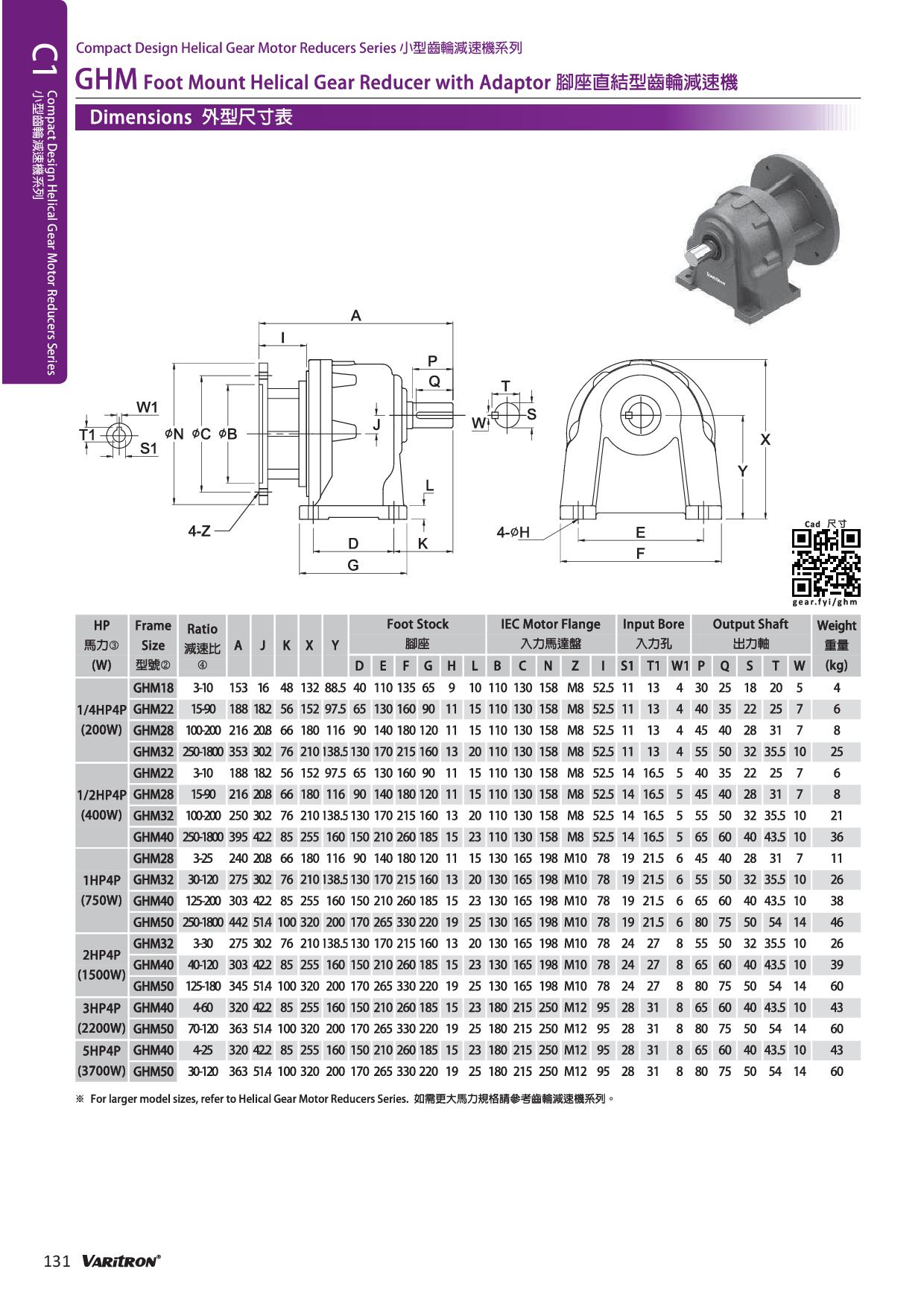

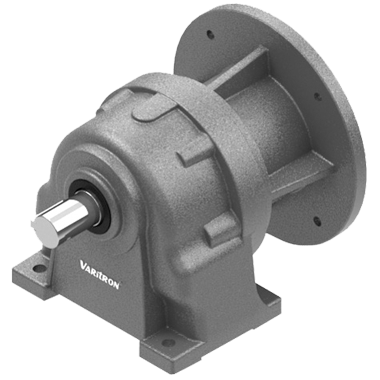

GHM Series Helical Inline Geared with Motors Adaptor

j

Model

GH:Foot Mount Helical Gearmotor

GHM: Foot Mount Helical Gear Reducer with Adaptor

GHD:Foot Mount Helical Gear Reducer with Input Shaft

GV:Flange Mount Helical Gearmotor

GVM:Flange Mount Helical Gear Reducer with Adaptor

GVD:Flange Mount Helical Gear Reducer with Input Shaft

GVV:Helical Gear Motor Agitator

k

Frame Size

GHM18, GHM22, GHM28, GHM32, GHM40, GHM50

l

Motor Power (W)

75,100,200,400,550,750,1500,2200,3700

m

Gearmotor Reduction Ratio

Refer toPerformance Chart page 128~129.

n

Suffix

(Optional)

Empty if non

B:With Brake

BC: With Brake and Clutch

DC:DC motor

F: External Fan

W:Outdoor

AVM: Speed Variator

AV:Inverter Motor

EP:IE3 Premium Efficiency

S:Special

o

Voltage

A: 1-Phase 110/220V, 50/60Hz

S1:3-Phase220/380V, 50/60Hz

S2: 3-Phase 200-220/400-440V, 50/60Hz                      S4: Others

S3: 3-Phase230-240/460-480V, 50/60Hz

‡

Terminal Box Direction

T1 (Standard), T2, T3, T4
