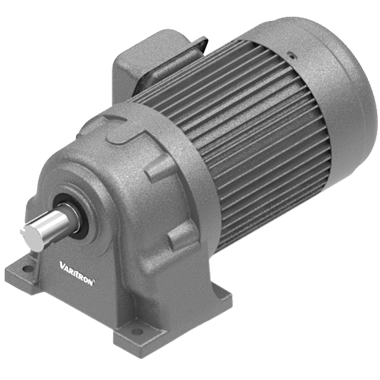

GH Series Helical Inline Gearmotor foot mount

Varitron GH Helical Gear Inline Gearmotor foot mounting with High Quality alloy steel machined and carbonized with precision tooth profile.

Go TO Top

Technical

Information



Go TO Top

Designation

j

Model

GH:Foot Mount Helical Gearmotor

GHM: Foot Mount Helical Gear Reducer with Adaptor

GHD:Foot Mount Helical Gear Reducer with Input Shaft

GV:Flange Mount Helical Gearmotor

GVM:Flange Mount Helical Gear Reducer with Adaptor

GVD:Flange Mount Helical Gear Reducer with Input Shaft

GVV:Helical Gear Motor Agitator



k

Frame Size

GH18, GH22, GH28, GH32, GH40, GH50Refer to each model.請參考各形式頁面

l

Motor Power (W)

75,100,200,400,550,750,1500,2200,3700

m

Ratio

Refer toPerformance Chart page 128~129.

n

Suffix

(Optional)

Empty if non

B:With Brake

BC: With Brake and Clutch

DC:DC motor

F: External Fan

W:Outdoor

AVM: Speed Variator

AV:Inverter Motor

EP:IE3 Premium Efficiency

S:Special

o

Voltage電壓

A: 1-Phase 110/220V, 50/60Hz

S1:3-Phase220/380V, 50/60Hz

S23-Phase 200-220/400-440V, 50/60Hz                     S4Others

S3: 3-Phase 230-240/460-480V, 50/60Hz

‡

Terminal Box Direction

電器盒方向

T1 (Standard)T2, T3, T4







Go TO Top

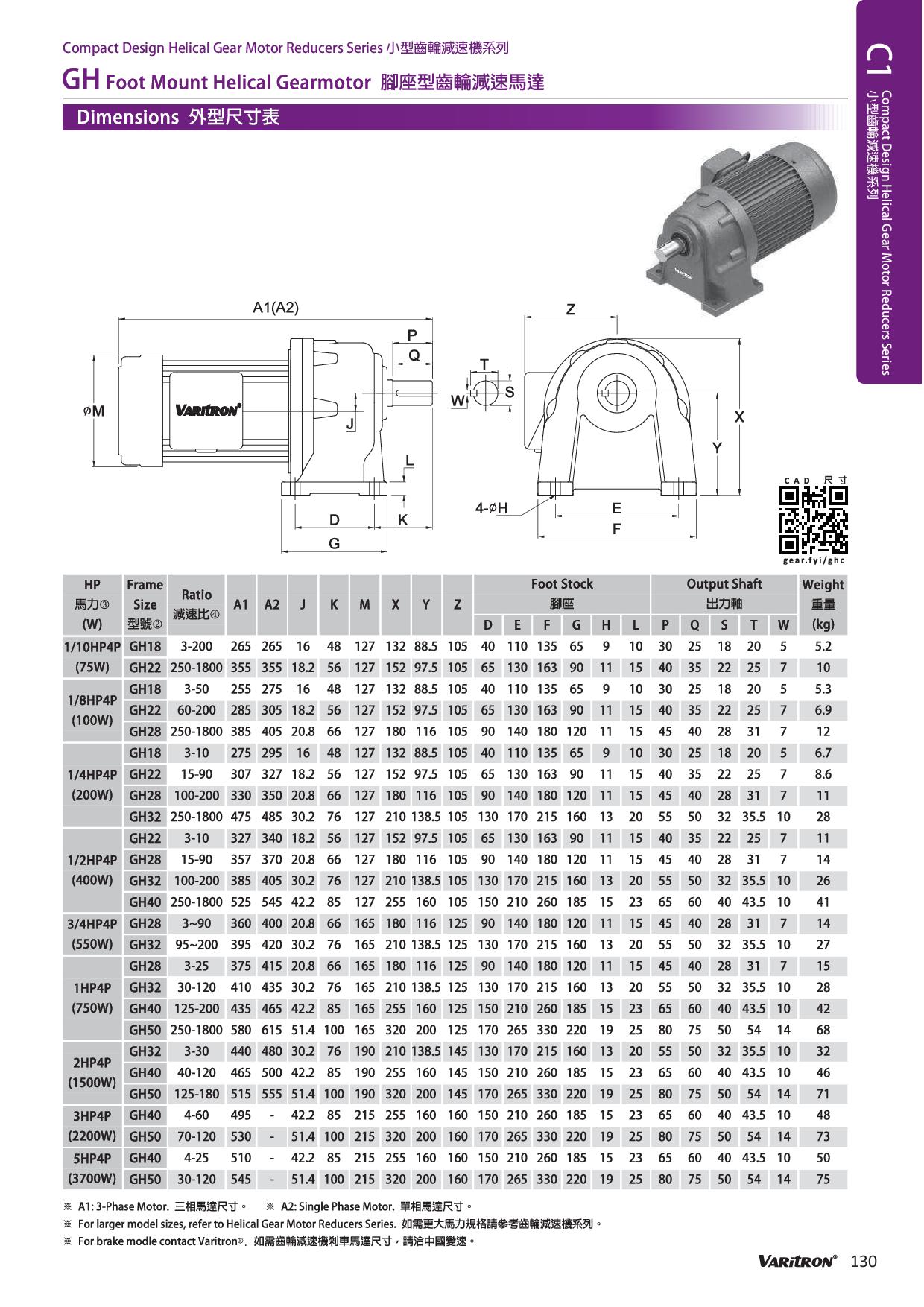

Dimensions

Gearmotor Model: GH18 200W, GH22 200W , GH22 400W, GH28 200W, GH28 400W, GH28 750W, GH32 400W, GH32 750W, GH32 1500W, GH32 2200W, GH40 750W, GH40 1500W, GH40 2200W, GH40 3700W, GH50 1500W, GH50 2200W, GH50 3700W
