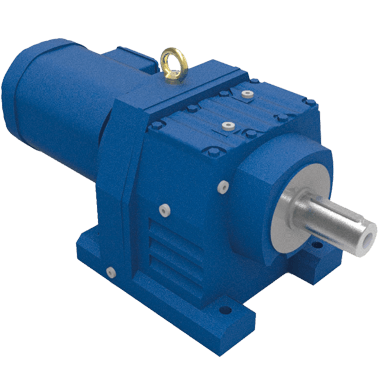

R Series Helical Gear Reducer SEW eurodrive

R Series Helical Gear Reducer

Go TO Top

Technical

Information



Go TO Top

Designation

j

Model

K:Helical-Bevel Gear Reducer Series

S:Helical-Worm Gear Reducer Series

R:Helical Gear Reducer Series

F:Parallel Axes Helical Gear Reducer Series



k

Shaft Type

Empty無記號Solid shaft

A: Hollow Shaft

MExtended Bearing Housing



l

Output Type

F: Flange Mount

Z: Small Flange Mount

B: Foot Mount

T: Torque Arm



m

Frame Size

K series: 37,47,57,67,77,87,97,107,127,157,167,187

S Series: 37,47,57,67,77,87,97

R Series: 17,27,37,47,57,67,77,87,97,107,137,147,167

F Series: 37,47,57,67,77,87,97,107,127,157

n

Input Type

Y: Motor

AM: IEC Adaptor

AD: Solid Shaft



o

Input Power  (kW4P)

0.2,0.4,0.75,1.5,2.2,4,5.5,7.5,11,

‡

Ratio

Refer To Performance Table

q

Operation Direction

M1(Standard),M2,M3,M4,M5,M6
