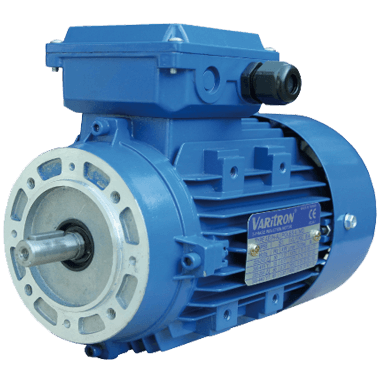

AEVH/ALB14 Induction Electric Motor

Varitron Motor aluminum housing three phase AC induction motor,with latest design in entirety,are made of selected quality materials and to the IEC standard. Designed as totally enclosed, outside fan cooled, squirrel cage type, and have the characteristics of novel design, beautiful modeling, compact structure, low noise, high efficiency, large torque, excellent starting performance, easy to use and maintain etc. The motors are adopted with F-class insulation AC motors have good performance,safety and reliable operation,nice appearance,and can be main-tained very conveniently,while with low noise,low vibration, light weight and simple construction. Varitron AC motors can be widely used as driving equipment of various machineries, such as machine tools, blowers, water pumps, compressors, reducers and in other aspects, such as transportation, agricultural machineries and food processing. Our Y series three-phase asynchronous motors are all tested to come up to the standards in terms of pedestal installation size, central height and other indexes of the motor.

Go TO Top

Technical

Information



Go TO Top

Designation

j

Model型式

AEEH/AEEP/AEES:Foot Mount Cast Iron Induction Motor

AEVH/AEVP/AEVS: Flange Mount Cast Iron Induction Motor

AEEH-ALB3: B3 Foot Mount Aluminum Induction Motor

AEVH-ALB5: B5 Flange Mount Aluminum Induction Motor

AEVH-ALB14:B14 Flange Mount Aluminum Induction Motor

腳座型鑄鐵感應馬達

法蘭型鑄鐵感應馬達

腳座型鋁殼感應馬達

B5法蘭型鋁殼感應馬達

B14法蘭型鋁殼感應馬達

k

Motor Horse Power

馬力

1,2,3,5,7½,10,15,20,25,30,

l

Pole極數

2,4,6,8

m

Suffix特殊

(Option選配)

Empty if non 無記號:無特殊

B: With Brake 有剎車

W: Outdoor 屋外型

EN: Encoder 編碼器

AV: Inverter Motor 變頻馬達

F: External Fan 獨立風扇

S: Special 特殊

SM: Smart monitoring 智能監控

n

Voltage電壓

A1: 220/380/440V 50Hz

A2:220/380/440V 60Hz

A3:220/380/440V 50/60Hz

B1:220/380V 50Hz

B2:220/380V 60Hz

B3: 220/380V 50/60Hz

C1:220/440V 50Hz

C2:220/440V 60Hz

C3:220/440V 50/60Hz

D: Others 其他
