TKF-Disco-Speed-Variator

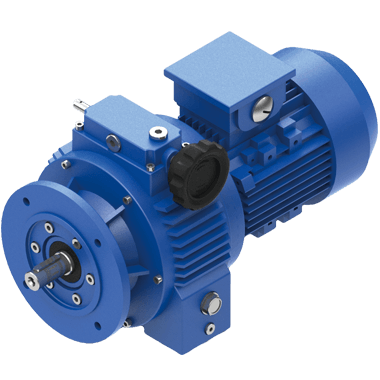

TKF Disco Speed Variator

Varitron TKF Speed Variator is a integrate design with high efficiency, compact size, long life span and simple structure invention. It is the most highly used speed variator in modern industrial. Its torque transmission is by using fixed-star wheel friction, where stability, abrasion resistance and toughness are the best in variator device.

Go TO Top

Features

▌Low Speed, High torque

▌Totally Enclosed Design

▌Speed Stability Within 1%

▌Compact, Light Weight with Modular Design

▌Minimum Maintenance and Easy to Operate

▌Wide range of applications

Go TO Top

Technical

Information

EU type 歐規TF. TXFTK. TKF

Power

馬力

Hp(kW)

Frame Size

型號

Ratio

變速比

Speed Range

變速範圍

Revolution Speed

出力軸回轉速 rpm

Output Torque

出力軸轉矩kg-m

Output Shaft

Radial Load

出力軸徑向

負荷kg

Output Shaft

Axial Load

出力軸軸向

負荷kg

IEC Input Adaptor

IEC入力法蘭

Foot Mount

腳座型

Flange Mount

法蘭型

50Hz

60Hz

50Hz

60Hz

1/4 (0.18)

TF002

TXF002

15

1/8.2~1/1.6

170~880

210-1050

0.3~0.15

0.25~0.13

40

30

63M-B5

1/2 (0.37)

TF005

TXF005

15

1/7~1/1.4

200~1000

240~1200

0.6~0.3

0.5~0.25

80

50

71M-B5

1 (0.75)

TF010

TXF010

15

1/7~1/1.4

200~1000

240~1200

1.2~0.6

1~0.5

100

106

80M-B5

2 (1.5)

TK020

TKF020

15

1/7~1/1.4

200~1000

240~1200

2.4~1.2

2~1

130

130

90L-B5

3 (2.2)

TK030

TKF030

15

1/7~1/1.4

200~1000

240~1200

3.6~1.8

3~1.5

190

170

100L-B5

5 (3.7)

TK050

TKF050

15

1/7~1/1.4

200~1000

240~1200

6~3

5~2.5

190

170

112M-B5

7.5 (5.5)

TK100

TKF100

15

1/7~1/1.4

200~1000

240~1200

9~4.5

7.5~3.8

220

200

132S-B5

10 (7.5)

TK100

TKF100

15

1/7~1/1.4

200~1000

240~1200

12~6

10~5

220

200

132M-B5





Go TO Top

Designation

j

Model型式

SR:Actuators with Input Shaft

SRM:Actuators with IEC Adaptor

升降機附入力軸

升降機附入力法蘭

k

Frame Size 型號

1T,2T,3T,5T,10T,15T,20T,30T,50T,100T

l

Ratio速比

Refer toPerformances Table Page 220請參考性能表220

m

Direction 軸向

W,R,R1,L,L1



n

Motor Horse Power馬力

05, 1, 2, 3, 5, 10 (For model SRM, 搭配SRM型式使用)

o

Installing 安裝方式

A,B,C,D,E,F   Refer to page 222.參考第222

p

Screw End 螺桿型式

N: No End (full rod)

S: Threaded End

HClevis End

R: Rod End

TTop Plate

全牙式

螺牙式

栓孔式

平頭式

頂板式

q

Length長度

Customized according to customer requirement. 依客戶需求訂製

  Dimensions and specifications in the catalog are subject to change without notice. 尺寸及規格若有變動,將不另行通知。





Go TO Top

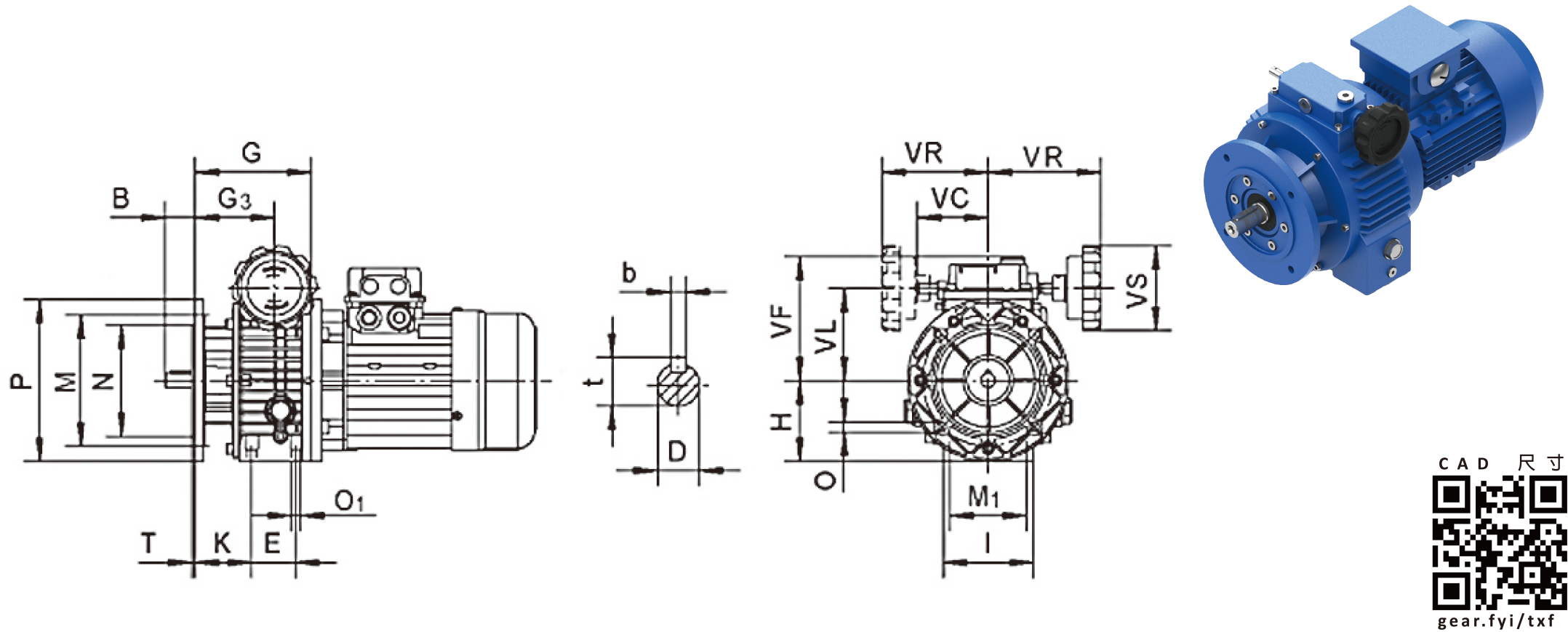

Dimensions





Frame Size

型號

B

H

D(j6)

G

G3

I

M

O

O1

P

T

VF

VL

VR

b

t

TXF002

23

70

11

112.5

64.5

72

115

9

M6

140

3.5

111

78

110

4

12.5

TXF005

30

80

14

110

74

90

130

9

M8

160

3.5

123

90

110

5

16

TXF010

40

100

19

139

85.5

98

165

11

M8

200

3.5

140

107

120

6

21.5

TKF020

50

126

24

188

115

241

165

11

-

200

3.5

144

122

150

8

27

TKF030

60

150

28

208

131

270

215

15

-

250

4

188

150

160

8

31

TKF050

60

150

28

208

131

270

215

15

-

250

4

188

150

160

8

31

TKF100

70

200

38

244

131

-

265

19

-

300

5

-

192

194

10

41
