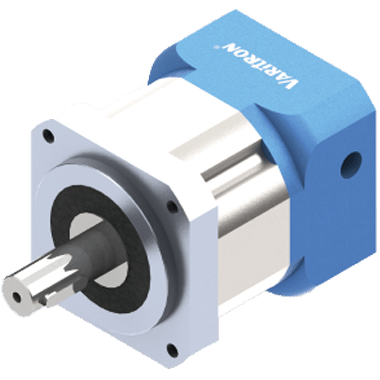

DM Series High Precision Planetary Gearbox

DM Series High Precision Planetary Gearbox

DM Series High precison planetary gearbox is impressive assortment of servo grade planetary gearbox for our different inline and right-angle series. Providing the ultimate flexibility for our customers.

Go TO Top

Features

Varitron Planetary Gearbox Inside view



- High Precision Gear -

 The planetary gear and sun gear are manufactured from high quality Ni-Cr-Mo alloy steel. Precision machined and carburized, then for precision tooth grinding or skiving assures gears high precision.



- Modular Design of Motor Connection Plate -

The special modular design of motor connection plate is suitable for any brand and any type of servomotor. Manufactured from aluminum alloy, its surface is anodized treated for upgrading environmental-resistant and corrosion-resistant capability.



- Single-piece Gearbox & Advanced Surface Treatment -

The gearbox and internal gear ring are single price design and constructed, which is manufactured from Cr-Mo alloy steel, and tempered for high torque output. Gearbox surface is anti-corrosive treated for upgrading environmental resistant and corrosionresistant capability.



- Modular Input Shaft -

Modular input shaft design and motor shaft are coupled through a dynamic balanced collar clamping mechanism to ensure connection concentricity and zero slip power transmission at high speed.



- Integrated Planetary Arm Bracket -

The planetary arm bracket and the output shaft are single piece design constructed to increase torsional rigidity and accuracy. The entire structure is one-time machined for controlling accuracy in the specified tolerance.




Model Number

DM Series High Precision Planetary Gearbox

DM042, DM060, DM070, DM090, DM120, DM150, DM180, DM180

Speed Reduction Method

Planetary gear mechanism with designed tooth profile

Efficiency

95% per stage gearbox

Shock Load

300% as there are only compressive forces rather than shear forces on the tooth

Gear box Mounting

Flange Mounting, Foot mounting parts sold separately

Reduction Ratio

Up to 1:10 per stage

1:1000 on 3-stages

Capacity Range

100Watt to 11,000Watt

Enclosure

Totally enclosed IP55

Power Source

Servo motor, stepper motor

Backlash

Single Stage: below 5arcmin

Double Stages: Below 8arcmin

Reduction Gearbox

Lubrication Method

High viscosity anti-separation grease

Method of Coupling with Driven Machine

Coupling, gears, chain sprocket or belt

Standard

CE, UL, CSA, ISO 9001, ISO14001

Warranty

1 Year Limited Warranty

Go TO Top

Technical

Information

Go TO Top

Designation

j

Model

DA: Helical Gear High Precision Planetary Gearbox

DM:Precision Planetary Gearbox

DF:Precision Flange Type Planetary Gearbox

DH:Standard Precision Planetary Gearbox

DL:Standard Precision Planetary Gearbox

DN:High R-A Load Standard Precision Planetary Gearbox

RAM-S:Precision Shaft Output Spiral Bevel Gearbox

RAM-SS:Precision Double Shaft Spiral Bevel Gearbox

RAM-H:Precision Hollow Shaft Spiral Bevel Gearbox

RAM-D: Precision Clamping Shaft Spiral Bevel Gearbox

RAM-F: Precision Flange Spiral Bevel Gearbox

RAH-S: Standard Precision Shaft Output Spiral Bevel Gearbox

RAH-SS:Standard Precision Double Shaft Spiral Bevel Gearbox

RAH-H:Standard Precision Hollow Shaft Spiral Bevel Gearbox

RAH-D:Standard Precision Clamping Shaft Spiral Bevel Gearbox

RAH-F: Standard PrecisionFlange Spiral Bevel Gearbox



k

Frame Size

DM042, DM060, DM070, DM090, DM120, DM150, DM180, DM220

Refer to Gearbox Quick Selection Table Page 89.

l

Stage

L1, L2, L3

m

Ratio

L1: 3 / 4 / 5 / 7 / 10

L2: 9 / 12 / 15 / 16 / 20 / 21 / 25 / 28 / 30 / 40 / 49 / 50 / 70

L3: 36 / 45 / 60 / 75 / 80 / 150 / 200 / 300 / 400 / 500 / 700 / 1000

n

Motor Shaft Diameter

(S)

Customized according to customer requirement.

o

Motor Pilot Diameter

(B)

Customized according to customer requirement.

p

Motor Guide Depth

(P)

Customized according to customer requirement.

q

Installing Screw P.C.D

(M)

Customized according to customer requirement.

r

Installing Screw Size

(A)

Customized according to customer requirement.




s



Motor Shaft Length

(R)

Customized according to customer requirement.

Go TO Top

Dimensions

Go TO Top

Applications

Application of Planetary Gearbox



Planetary Gearboxes are used on high precision motion control application that require a high torque, high torsional stiffness and low backlash the specifics of which will vary by application.



Planetary gearboxes increase the torque by the stage of reduction ratio, making it possible to run the motor at a higher, more efficient speed.  The inertia reflected back to the motor is reduced for increased stability.  Using a planetary gearbox allow machine builders using a smaller, less expensive motion control package.



The application of planetary gearboxes covers the entire range of automation.  It's frequently found in "pick and place" systems, loading and unloading gantry robots, driving rotary and linear actuators, in packaging machineries, positioning tables in medical equipment.

Go TO Top

Q &

A

Q: DM series planetary gearbox Reduction Ratio avaliable in single stage (L1) ?

A: 1:3, 1:4, 1:5, 1:7, 1:10



Q: DM series planetary gearbox Reduction Ratio avaliable in double stage (L2) ?

A:  1:9, 1:12, 1:15, 1:16, 1:20, 1:21, 1:25, 1:28, 1:30, 1:35, 1:40. 1:49, 1:50, 1:70



Q: DM series model number avaliable ?

A: DM042-L1, DM042-L2, DM060-L1, DM060-L2, DM060-L3, DM080-L1, DM080-L2, DM080-L3, DM090-L1, DM090-L2, DM090-L3, DM120-L1, DM120-L2, DM120-L3, DM150-L1, DM150-L2, DM150-L3



Q: What is the DM series APEX torque Planetary gearbox ?

A: 7080Nm for DM220



Q: What is the interchange Dynamics model for DM High precision gearbox

A: AF042 / AF060 / AF060 / AF075 / AF075/ AF100 / AF140 / AF180 / AF220
