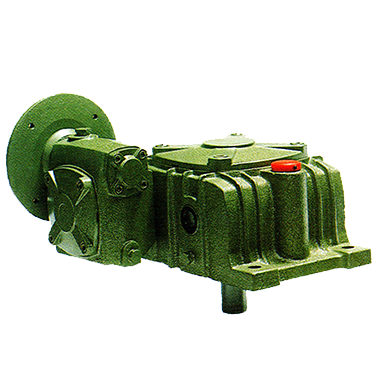

UHM Worm Gear Reducer

Varitron UHM worm gear reducer gearbox series base on years of experiences uses designed teeth surface with unsurpassed torque transfer performance with great performance, efficency and cost.Worm gear system transmits power through sliding contact, resulting in extremely low vibration , noise, little backlash and self-locking property.

Go TO Top

Features

-Housing:One time we casting creats great rigidity for severe impacts. Outer cooling fins and internal lubrication oil diversion channel design to increase heat dissipation.

-Worm Shaft: Manufactured with Carbon alloyed Steel S45C or SCM415, precison machined and carburized to HRC45 or HRC60, then for precision tooth grinding to ensure maximum contacting.

-Worm Wheel: Manufactured with Carbon alloy ALBC2, teeth are machined by precision CNC hobbing machine to sustain high impact.

Go TO Top

Designation

Go TO Top

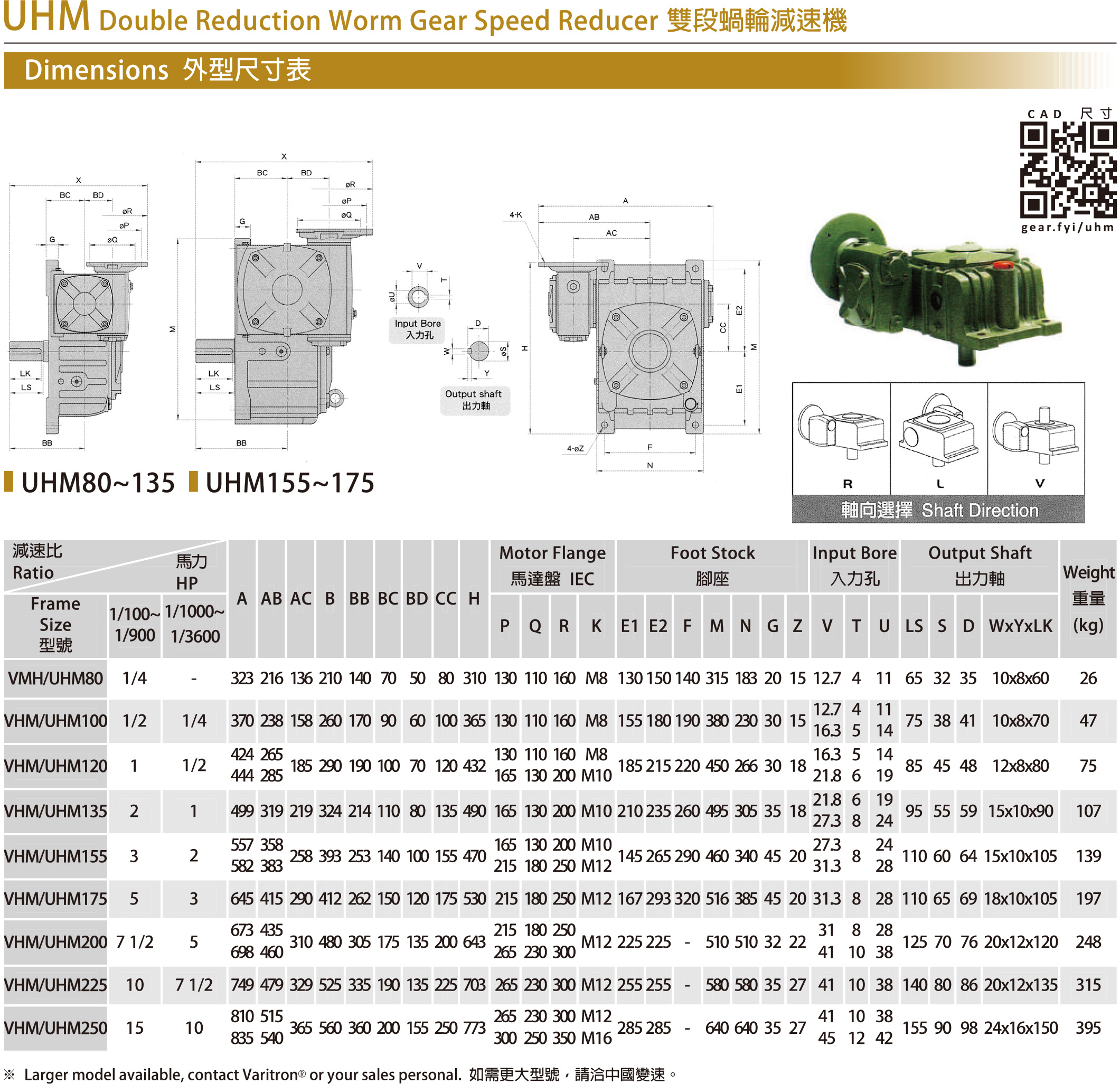

Dimensions
