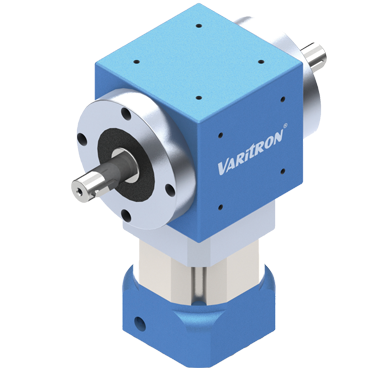

RAH-SS Series Precision Double Shaft Spiral Bevel Gearbox



- High Precision Gear -

 The planetary gear and sun gear are manufactured from high quality Ni-Cr-Mo alloy steel. Precision machined and carburized, then for precision tooth grinding or skiving assures gears high precision.



- Modular Deisgn of Motor Connection Plate -

The special modular design of motor connection plate is suitable for any brand and any type of servomotor. Manufactured from aluminum alloy, its surface is anodized treated for upgrading environmental-resistant and corrosion-resistant capability.



- Single-piece Gearbox & Advanced Surface Treatment -

The gearbox and internal gear ring are single price design and constructed, which is manufactured from Cr-Mo alloy steel, and tempered for high torque output. Gearbox surface is anti-corrosive treated for upgrading environmental resistant and corrosionresistant capability.



- Modular Input Shaft -

Modular input shaft design and motor shaft are coupled through a dynamic balanced collar clamping mechanism to ensure connection concentricity and zero slip power transmission at high speed.



- Integrated Planetary Arm Bracket -

The planetary arm bracket and the output shaft are single piece design constructed to increase torsional rigidity and accuracy. The entire structure is one-time machined for controlling accuracy in the specified tolerance.



RAH-SS Gearbox Model Number	RAH-SS Series Double Shaft Right Angle Spiral Bevel Gearbox RAH060-2S RAH090-2S RAH120-2S RAH150-2S
Gears Reduction	Spur Planertary Gears with Sprial Bevel Gears
Efficiency	95% per stage gearbox
Shock Load	300% as there are only compressive forces rather than shear forces on the tooth
Gear box Mounting	Flange Mounting, Foot mounting parts sold separately
Reduction Ratio	Up to 1:10 per stage 1:1000 on 3-stages
Capacity Range	100Watt to 11,000Watt
Enclosure	Totally enclosed IP65
Power Source	Servo motor, stepper motor (input adaptor design to fit customers motor)
Backlash	Single Stage L1 : below 14arcmin Double Stages L2 : Below 18arcmin
Reduction Gearbox Lubrication Method	High viscosity anti-separation grease
Method of Coupling with Driven Machine	Coupling, gears, chain sprocket or belt
Standard	CE, UL, CSA, ISO 9001, ISO14001
Warranty	1 Year Limited Warranty



Specification	Reduction Ratio (Stages)	RAH060-SS	RAH090-SS	RAH120-SS	RAH150-SS
Instantaneous Max. Output Torque T2B (Nm)	3/9/10/30/100	132	498	750	1428
	4/12/16/20/28/40	162	498	750	1500
	5/15/25/35/50	138	498	750	1500
	7/21/49/70	144	498	750	1500
Defined Output Torque T2N (Nm)	3/9/10/21/30	44	166	250	476
	4/15/16/20/25/28/40	54	166	250	500
	5/15/25/35/50	46	166	250	500
	7/21/49/70	48	166	250	500
Reduction Ratio	L1: 1 Stage	3 / 4 / 5 / 7 / 10
	L2: 2 Stages	9 / 12 / 15 / 16 / 20 / 21 / 25 / 28 / 30 / 35 / 40 / 49 / 50 / 70 / 100
	L3: 3 Stages	100 / 200 / 250
Defined Input Rotational Speed n1N (rpm)	3/4/5 (L1)	3300	2600	2300	2200
	7/10 (L1)	4000	2900	2700	2700
	12 ~ 40 (L2)	4400	3200	3000	3000
	50 (L2)	4800	3600	3300	3200
	70 ~ 100 (L2)	5500	4200	3900	3500
Backlash  (arcmin)	3~10 (L1)	≤16	≤16	≤16	≤16
	12~100 (L2)	≤20	≤20	≤20	≤20
Full Load Efficiency  %	3~10 (L1)	≥91
	12~100 (L2)	≥88
Service Life Lh2 (hrs)	3~100 (L1,L2)	20000
Weight  (kgs)	3~10 (L1)	Vary according to shaft type
	12~100 (L2)
Noise  (db)		65	65	65	65
Temperature °C		（-15°C  ~ +90°C）
Protection Rank		IP65
Lubricating Oil		Synthetic Lubricant 合成潤滑油 ISO VG220

j	Model	DA: Helical Gear High Precision Planetary Gearbox DM:Precision Planetary Gearbox DF:Precision Flange Type Planetary Gearbox DH:Standard Precision Planetary Gearbox DL:Standard Precision Planetary Gearbox DN:High R-A Load Standard Precision Planetary Gearbox RAM-S:Precision Shaft Output Spiral Bevel Gearbox RAM-SS:Precision Double Shaft Spiral Bevel Gearbox RAM-H:Precision Hollow Shaft Spiral Bevel Gearbox RAM-D: Precision Clamping Shaft Spiral Bevel Gearbox RAM-F: Precision Flange Spiral Bevel Gearbox RAH-S: Standard Precision Shaft Output Spiral Bevel Gearbox RAH-SS:Standard Precision Double Shaft Spiral Bevel Gearbox RAH-H:Standard Precision Hollow Shaft Spiral Bevel Gearbox RAH-D:Standard Precision Clamping Shaft Spiral Bevel Gearbox RAH-F: Standard PrecisionFlange Spiral Bevel Gearbox
k	Frame Size	RAH060-SS-L1, RAH060-SS-L2, RAH090-SS-L1, RAH090-SS-L2, RAH120-SS-L1, RAH120-SS-L2, RAH150-SS-L1, RAH150-SS-L2, Refer to Gearbox Quick Selection Table Page 89.
l	Stage	L1, L2, L3
m	Ratio	L1: 3 / 4 / 5 / 7 / 10 L2: 9 / 12 / 15 / 16 / 20 / 21 / 25 / 28 / 30 / 40 / 49 / 50 / 70 L3: 36 / 45 / 60 / 75 / 80 / 150 / 200 / 300 / 400 / 500 / 700 / 1000
n	Motor Shaft Diameter (S)	Customized according to customer requirement.
o	Motor Pilot Diameter (B)	Customized according to customer requirement.
p	Motor Guide Depth (P)	Customized according to customer requirement.
q	Installing Screw P.C.D (M)	Customized according to customer requirement.
r	Installing Screw Size (A)	Customized according to customer requirement.
s	Motor Shaft Length (R)	Customized according to customer requirement.



Application of Planetary Gearbox



Planetary Gearboxes are used on high precision motion control application that require a high torque, high torsional stiffness and low backlash the specifics of which will vary by application.



Planetary gearboxes increase the torque by the stage of reduction ratio, making it possible to run the motor at a higher, more efficient speed.  The inertia reflected back to the motor is reduced for increased stability.  Using a planetary gearbox allow machine builders using a smaller, less expensive motion control package.



The application of planetary gearboxes covers the entire range of automation.  It's frequently found in "pick and place" systems, loading and unloading gantry robots, driving rotary and linear actuators, in packaging machineries, positioning tables in medical equipment.

Q: RAH-SS series planetary gearbox Reduction Ratio avaliable in single stage (L1) ?

A: 1:3, 1:4, 1:5, 1:7, 1:10



Q: RAH-2S series planetary gearbox Reduction Ratio avaliable in double stage (L2) ?

A:  1:9, 1:12, 1:15, 1:16, 1:20, 1:21, 1:25, 1:28, 1:30, 1:35, 1:40. 1:49, 1:50, 1:70



Q: RAH-SS series model number avaliable ?

A: RAH060-L1, RAH060-L2, RAH060-L3, RAH080-L1, RAH080-L2, RAH080-L3, RAH090-L1, RAH090-L2, RAH090-L3, RAH120-L1, RAH120-L2, RAH120-L3, RAH150-L1, RAH150-L2, RAH150-L3



Q: What is the RAH-SS series APEX torque Planetary gearbox ?

A: 1500Nm for RAH150



Q: What is the interchange Dynamics model for RAH-2S High precision gearbox

A: ATB065FL / ATB075FL / ATB090FL / ATB110FL / ATB140FL / ATB170FL / ATB210FL / ATB240FL / ATB280FL
