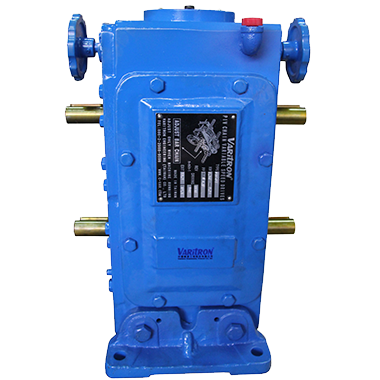

VARITRON Vertical PIV Chain Variable Speed Drive design to have outstanding stability of speed, High efficiency Exceptional torque characteristics, Modular Design, Operationally reversible and Wide Range of output speed.
Features
▌Outstanding Stability of Speed
Precision mechanism design prevents slip lost of speed even when uneven load.
▌High Efficiency Exceptional Torque Characteristics
Special design metal slatted chain and grooved curved conical discs provides high efficiency and torque characteristics.
▌Modular Design
Modular design suitable for horizontal or vertical mounting with dual drive shafts provide flexibility of coupling.
▌Operationally Reversible and Wide Range of Output Speed
PIV Chain variable speed drive has a wide range of variable ratio of 1:3,1:4.5 & 1:6 with operationally reversible.

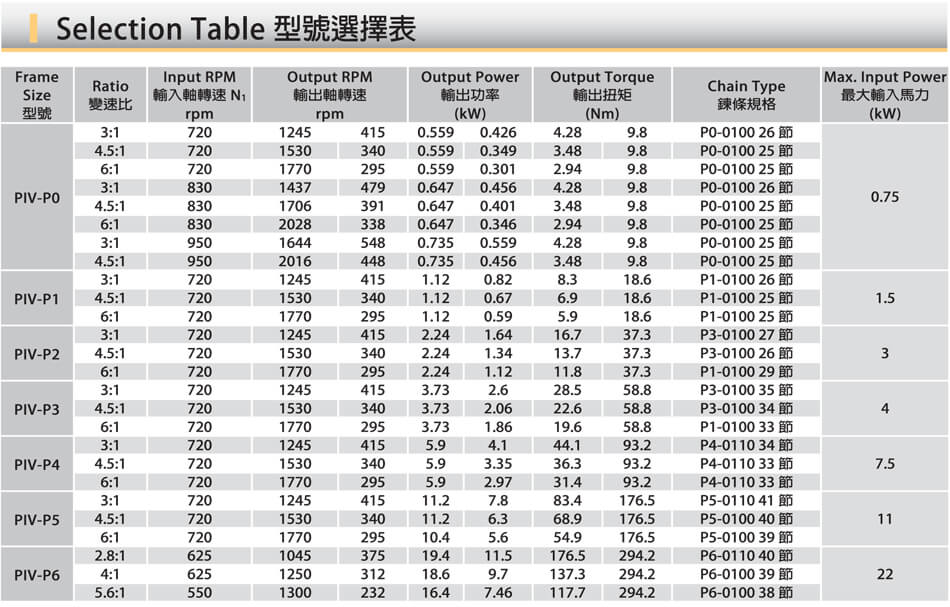

Technical
Information

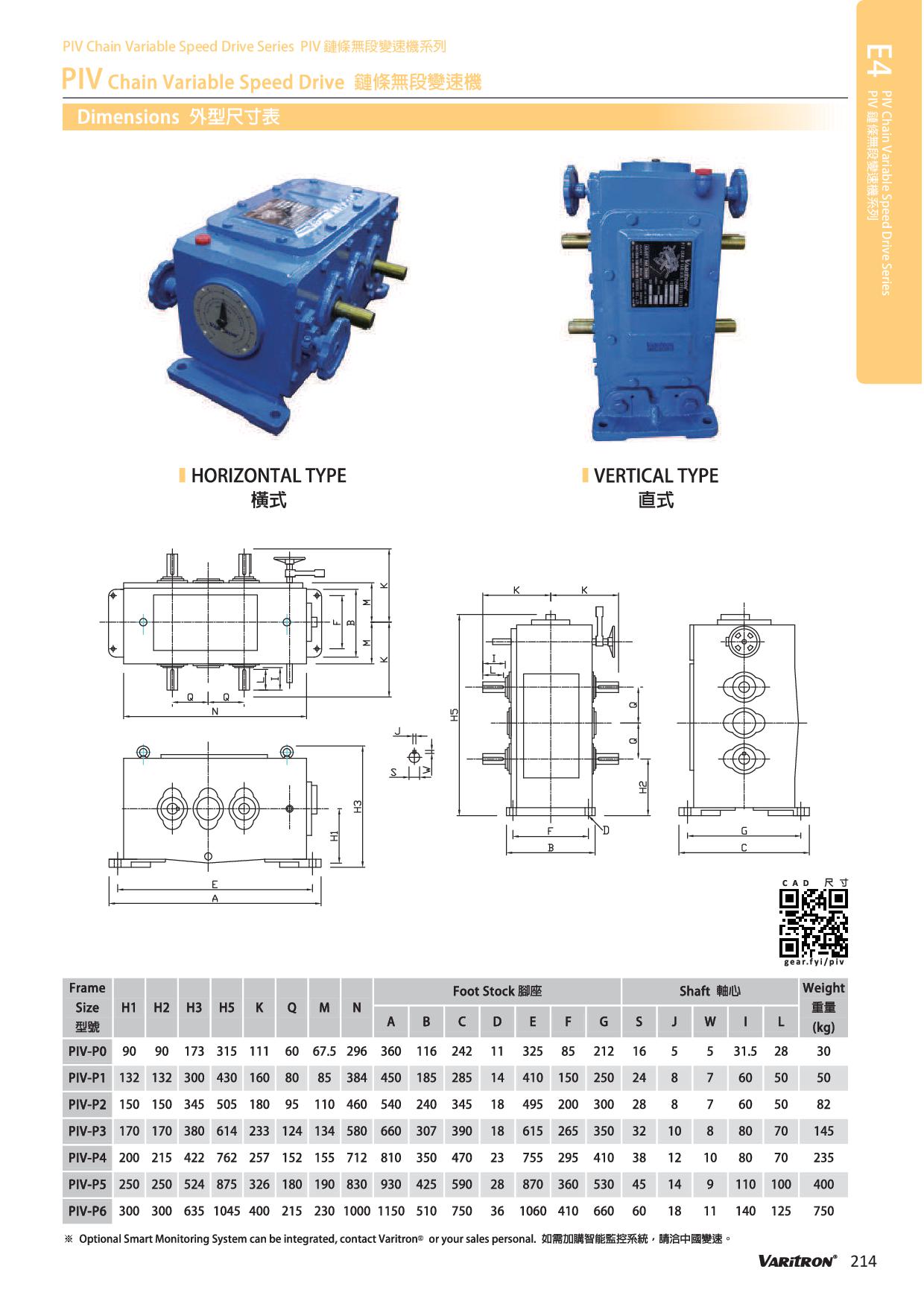

Dimensions
Applications
Printing machinery, food machinery, paper machinery, plastic machinery
Downloads
Product
Inquiry
