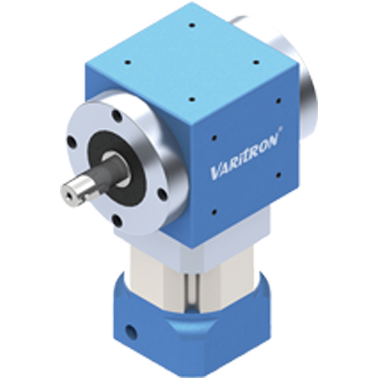

RAM-S Series High Precision Shaft Output Spiral Bevel Gearbox

Varitron Right Angle single output shaft RAM-S series Precision planetary gear box promise dynamic performances with low backlash.

Go TO Top

Features

Varitron Planetary Gearbox Inside view



- High Precision Gear -

 The planetary gear and sun gear are manufactured from high quality Ni-Cr-Mo alloy steel. Precision machined and carburized, then for precision tooth grinding or skiving assures gears high precision.



- Modular Deisgn of Motor Connection Plate -

The special modular design of motor connection plate is suitable for any brand and any type of servomotor. Manufactured from aluminum alloy, its surface is anodized treated for upgrading environmental-resistant and corrosion-resistant capability.



- Single-piece Gearbox & Advanced Surface Treatment -

The gearbox and internal gear ring are single price design and constructed, which is manufactured from Cr-Mo alloy steel, and tempered for high torque output. Gearbox surface is anti-corrosive treated for upgrading environmental resistant and corrosionresistant capability.



- Modular Input Shaft -

Modular input shaft design and motor shaft are coupled through a dynamic balanced collar clamping mechanism to ensure connection concentricity and zero slip power transmission at high speed.



- Integrated Planetary Arm Bracket -

The planetary arm bracket and the output shaft are single piece design constructed to increase torsional rigidity and accuracy. The entire structure is one-time machined for controlling accuracy in the specified tolerance.




Model Number

RAM-S Series Shaft Output Right Angle Spiral Bevel Gearbox

Speed Reduction Method

Planetary gear mechanism with designed tooth profile

Efficiency

95% per stage gearbox

Shock Load

300% as there are only compressive forces rather than shear forces on the tooth

Gear box Mounting

Flange Mounting, Foot mounting parts sold separately

Reduction Ratio

Up to 1:10 per stage

1:1000 on 3-stages

Capacity Range

100Watt to 11,000Watt

Enclosure

Totally enclosed IP55

Power Source

Servo motor, stepper motor

Backlash

Single Stage: below 5arcmin

Double Stages: Below 8arcmin

Reduction Gearbox

Lubrication Method

High viscosity anti-separation grease

Method of Coupling with Driven Machine

Coupling, gears, chain sprocket or belt

Standard

CE, UL, CSA, ISO 9001, ISO14001

Warranty

1 Year Limited Warranty

Go TO Top

Technical

Information



Specification 規格

Ratio減速比

(Stage 段數)

RAM060

RAM090

RAM120

RAM150

Instantaneous Max. Output Torque

瞬間最大輸出扭矩

T2B (Nm)

3/9/10/30/100

132

498

750

1428

4/12/16/20/28/40

162

498

750

1500

5/15/25/35/50

138

498

750

1500

7/21/49/70

144

498

750

1500

Defined Output Torque

額定輸出扭矩

T2N (Nm)

3/9/10/21/30

44

166

250

476

4/15/16/20/25/28/40

54

166

250

500

5/15/25/35/50

46

166

250

500

7/21/49/70

48

166

250

500

Reduction Ratio 減速比

L1: 1 Stage 單段

3 / 4 / 5 / 7 / 10

L2: 2 Stage 雙段

9 / 12 / 15 / 16 / 20 / 21 / 25 / 28 / 30 / 35 / 40 / 49 / 50 / 70 / 100

L3: 3Stage 三段

100/200/250

Defined Input Rotational Speed

額定輸入轉速

n1N (rpm)

3/4/5 (L1)

3300

2600

2300

2200

7/10 (L2)

4000

2900

2700

2700

12 ~ 40 (L2)

4400

3200

3000

3000

50 (L2)

4800

3600

3300

3200

70 ~ 100 (L2)

5500

4200

3900

3500

Backlash 精密背隙 (arcmin)

3~10 (L1)

≤8

≤8

≤8

≤8

12~100 (L2)

≤11

≤11

≤11

≤11

Full Load Efficiency

滿載時使用效率 %

3~10 (L1)

≥91

12~100 (L2)

≥88

Service Life使用壽命Lh2 (hrs)

3~100 (L1,L2)

20000

Weight 重量 (kgs)

3~10 (L1)

Vary according to shaft type 依產品輸出軸類型有所不同

12~100 (L2)

Noise 噪音值 (db)



65

65

65

65

Temperature使用溫度範圍°C



-15°C ~ +90°C

Protection Rank 防護等級



IP64

Lubricating Oil 潤滑油



Synthetic Lubricant 合成潤滑油 ISO VG220



Go TO Top

Designation

j

Model型式

DA: Helical Gear High Precision Planetary Gearbox

DM:Precision Planetary Gearbox

DF:Precision Flange Type Planetary Gearbox

DH:Standard Precision Planetary Gearbox

DL:Standard Precision Planetary Gearbox

DN:High R-A Load Standard Precision Planetary Gearbox

RAM-S:Precision Shaft Output Spiral Bevel Gearbox

RAM-SS:Precision Double Shaft Spiral Bevel Gearbox

RAM-H:Precision Hollow Shaft Spiral Bevel Gearbox

RAM-D: Precision Clamping Shaft Spiral Bevel Gearbox

RAM-F: Precision Flange Spiral Bevel Gearbox

RAH-S: Standard Precision Shaft Output Spiral Bevel Gearbox

RAH-SS:Standard Precision Double Shaft Spiral Bevel Gearbox

RAH-H:Standard Precision Hollow Shaft Spiral Bevel Gearbox

RAH-D:Standard Precision Clamping Shaft Spiral Bevel Gearbox

RAH-F: Standard PrecisionFlange Spiral Bevel Gearbox

斜齒輪高精密型

密型

法蘭式精密型

標準型

標準型

高徑軸向負荷標準型

精密單出力軸直角型

精密雙出力軸直角型

精密中空軸直角型

精密束軸直角型

精密法蘭直角型

標準單出力軸直角型

標準雙出力軸直角型

標準中空軸直角型

標準束軸直角型

標準法蘭直角型

k

Frame Size 型號

042,060,070,080,090,120,150,180,220

Refer to Gearbox Quick Selection Table Page 89. 請參考快速選擇表第89

l

Stage段數

L1, L2, L3

m

Ratio減速比

L1: 3 / 4 / 5 / 7 / 10

L2: 9 / 12 / 15 / 16 / 20 / 21 / 25 / 28 / 30 / 40 / 49 / 50 / 70

L3: 36 / 45 / 60 / 75 / 80 / 150 / 200 / 300 / 400 / 500 / 700 / 1000

n

Motor Shaft Diameter

馬達軸心直徑(S)

Customized according to customer requirement. 依客戶需求訂製

o

Motor Pilot Diameter

馬達引導外徑(B)

Customized according to customer requirement. 依客戶需求訂製

p

Motor Guide Depth

馬達引導深度(P)

Customized according to customer requirement. 依客戶需求訂製

q

Installing Screw P.C.D

安裝螺絲孔直徑(M)

Customized according to customer requirement. 依客戶需求訂製

r

Installing Screw Size

安裝螺絲孔內徑(A)

Customized according to customer requirement. 依客戶需求訂製




s



Motor Shaft Length

馬達出力軸長度(R)

Customized according to customer requirement. 依客戶需求訂製

Go TO Top

Dimensions

Go TO Top

Applications



Application of Planetary Gearbox



Planetary Gearboxes are used on high precision motion control application that require a high torque, high torsional stiffness and low backlash the specifics of which will vary by application.



Planetary gearboxes increase the torque by the stage of reduction ratio, making it possible to run the motor at a higher, more efficient speed.  The inertia reflected back to the motor is reduced for increased stability.  Using a planetary gearbox allow machine builders using a smaller, less expensive motion control package.



The application of planetary gearboxes covers the entire range of automation.  It's frequently found in "pick and place" systems, loading and unloading gantry robots, driving rotary and linear actuators, in packaging machineries, positioning tables in medical equipment.
