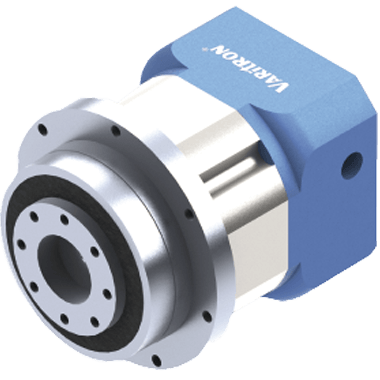

Varitron DF flange mount low backlash high precision planetary gearbox promise dynamic performances, backlash and torsional stiffness for motion control.
Features
- High Precision Gear -
The planetary gear and sun gear are manufactured from high quality Ni-Cr-Mo alloy steel. Precision machined and carburized, then for precision tooth grinding or skiving assures gears high precision.
- Modular Deisgn of Motor Connection Plate -
The special modular design of motor connection plate is suitable for any brand and any type of servomotor. Manufactured from aluminum alloy, its surface is anodized treated for upgrading environmental-resistant and corrosion-resistant capability.
- Single-piece Gearbox & Advanced Surface Treatment -
The gearbox and internal gear ring are single price design and constructed, which is manufactured from Cr-Mo alloy steel, and tempered for high torque output. Gearbox surface is anti-corrosive treated for upgrading environmental resistant and corrosionresistant capability.
- Modular Input Shaft -
Modular input shaft design and motor shaft are coupled through a dynamic balanced collar clamping mechanism to ensure connection concentricity and zero slip power transmission at high speed.
- Integrated Planetary Arm Bracket -
The planetary arm bracket and the output shaft are single piece design constructed to increase torsional rigidity and accuracy. The entire structure is one-time machined for controlling accuracy in the specified tolerance.
|
Model Number |
DF Series High Precision Planetary Gearbox |
|
Speed Reduction Method |
Planetary gear mechanism with designed tooth profile |
|
Efficiency |
95% per stage gearbox |
|
Shock Load |
300% as there are only compressive forces rather than shear forces on the tooth |
|
Gear box Mounting |
Flange Mounting, Foot mounting parts sold separately |
|
Reduction Ratio |
Up to 1:10 per stage 1:1000 on 3-stages |
|
Capacity Range |
100Watt to 11,000Watt |
|
Enclosure |
Totally enclosed IP55 |
|
Power Source |
Servo motor, stepper motor |
|
Backlash |
Single Stage: below 5arcmin Double Stages: Below 8arcmin |
|
Reduction Gearbox Lubrication Method |
High viscosity anti-separation grease |
|
Method of Coupling with Driven Machine |
Coupling, gears, chain sprocket or belt |
|
Standard |
CE, UL, CSA, ISO 9001, ISO14001 |
|
Warranty |
1 Year Limited Warranty |
Technical
Information
|
Specification 規格 |
Ratio減速比 (Stage 段數) |
DF060 |
DF090 |
DF120 |
DF150 |
|
|
Instantaneous Max. Output Torque 瞬間最大輸出扭矩 T2B (Nm) |
3/9/10/30/100 |
132 |
504 |
780 |
1428 |
|
|
4/12/16/20/28/40 |
162 |
564 |
918 |
1680 |
||
|
5/15/25/35/50 |
138 |
528 |
855 |
1560 |
||
|
7/21/49/70 |
144 |
540 |
879 |
1608 |
||
|
Defined Output Torque 額定輸出扭矩 T2N (Nm) |
3/9/10/21/30/100 |
44 |
168 |
260 |
476 |
|
|
4/15/16/20/25/28/40 |
54 |
188 |
306 |
560 |
||
|
5/15/25/35/50 |
46 |
176 |
285 |
520 |
||
|
7/21/49/70 |
48 |
180 |
292 |
536 |
||
|
Reduction Ratio 減速比 |
L1: 1 Stage 單段 |
3 / 4 / 5 / 7 / 10 |
||||
|
L2: 2 Stage 雙段 |
9 / 12 / 15 / 16 / 20 / 21 / 25 / 28 / 30 / 35 / 40 / 49 / 50 / 70 |
|||||
|
L3: 3 Stage 三段 |
100 / 200 / 250 |
|||||
|
Defined Input Rotational Speed 額定輸入轉速 n1N (rpm) |
3/4/5 (L1) |
3300 |
2600 |
2300 |
2200 |
|
|
7/10 (L1) |
4000 |
2900 |
2700 |
2700 |
||
|
12 ~ 40 (L2) |
4400 |
3200 |
3000 |
3000 |
||
|
50 (L2) |
4800 |
3600 |
3300 |
3200 |
||
|
70 ~ 100 (L2) |
5500 |
4200 |
3900 |
3500 |
||
|
Backlash 精密背隙 (arcmin) |
3~10 (L1) |
≤5 |
≤5 |
≤5 |
≤5 |
|
|
12~100 (L2) |
≤8 |
≤8 |
≤8 |
≤8 |
||
|
Torsional Rigidity 扭轉剛性 (Nm/arcmin) |
3~100 (L1,L2) |
6.5 |
14 |
27 |
48 |
|
|
Max. Bending Moment 最大彎曲力矩 (N) |
3~100 (L1,L2) |
50 |
98 |
125 |
200 |
|
|
Allowable Axial Force 容許軸向力 F2aB2(N) |
3~100 L1, L2 |
2300 |
5400 |
6700 |
9000 |
|
|
Full Load Efficiency 滿載時使用效率 % |
3~10 (L1) |
≥97 |
||||
|
12~100 (L2) |
≥94 |
|||||
|
Service Life 使用壽命Lh2 (hrs) |
3~100 (L1,L2) |
20000 |
||||
|
Weight 重量 (kgs) |
3~10 (L1) |
2.3 |
4.7 |
7.4 |
22 |
|
|
12~100 (L2) |
2.8 |
5.8 |
8.9 |
29 |
||
|
Noise 噪音值 (db) |
|
65 |
65 |
64 |
64 |
|
|
Temperature 使用溫度範圍°C |
|
（-15°C ~ +90°C） |
||||
|
Protection Rank 防護等級 |
|
IP64 |
||||
|
Lubricating Oil 潤滑油 |
|
Synthetic Lubricant 合成潤滑油 ISO VG220 |
||||
|
Moment Of Inertia 轉動慣量 J1 (kg.cm) |
Stage 段數 |
Ratio 減速比 |
|
|
||
|
L1 |
3 |
0.04 |
0.78 |
2.38 |
19.8 |
|
|
4 |
0.03 |
0.6 |
2 |
17 |
||
|
5 |
0.03 |
0.59 |
2 |
17 |
||
|
7 |
0.03 |
0.73 |
2 |
16.8 |
||
|
10 |
0.04 |
0.75 |
2.3 |
19 |
||
|
L2 |
9 |
0.04 |
0.78 |
2.38 |
19.8 |
|
|
12 |
0.03 |
0.73 |
2.1 |
17 |
||
|
16 |
0.03 |
0.6 |
2.1 |
17 |
||
|
20 |
0.03 |
0.6 |
2.1 |
16.8 |
||
|
25 |
0.03 |
0.75 |
2.1 |
17 |
||
|
28 |
0.03 |
0.75 |
2.1 |
19 |
||
|
35 |
0.03 |
0.73 |
2.38 |
19 |
||
|
40 |
0.04 |
0.78 |
2.38 |
19 |
||
|
50 |
0.04 |
0.78 |
2.38 |
19 |
||
|
70 |
0.04 |
0.78 |
2.38 |
19 |
||
|
100 |
0.04 |
0.78 |
2.38 |
19.8 |
||
Designation
|
j |
Model型式 |
DA: Helical Gear High Precision Planetary Gearbox DM:Precision Planetary Gearbox DF:Precision Flange Type Planetary Gearbox DH:Standard Precision Planetary Gearbox DL:Standard Precision Planetary Gearbox DN:High R-A Load Standard Precision Planetary Gearbox RAM-S:Precision Shaft Output Spiral Bevel Gearbox RAM-SS:Precision Double Shaft Spiral Bevel Gearbox RAM-H:Precision Hollow Shaft Spiral Bevel Gearbox RAM-D: Precision Clamping Shaft Spiral Bevel Gearbox RAM-F: Precision Flange Spiral Bevel Gearbox RAH-S: Standard Precision Shaft Output Spiral Bevel Gearbox RAH-SS:Standard Precision Double Shaft Spiral Bevel Gearbox RAH-H:Standard Precision Hollow Shaft Spiral Bevel Gearbox RAH-D:Standard Precision Clamping Shaft Spiral Bevel Gearbox RAH-F: Standard PrecisionFlange Spiral Bevel Gearbox |
斜齒輪高精密型 精密型 法蘭式精密型 標準型 標準型 高徑軸向負荷標準型 精密單出力軸直角型 精密雙出力軸直角型 精密中空軸直角型 精密束軸直角型 精密法蘭直角型 標準單出力軸直角型 標準雙出力軸直角型 標準中空軸直角型 標準束軸直角型 標準法蘭直角型 |
|
k |
Frame Size 型號 |
042,060,070,080,090,120,150,180,220… Refer to Gearbox Quick Selection Table Page 89. 請參考快速選擇表第89頁 |
|
|
l |
Stage段數 |
L1, L2, L3 |
|
|
m |
Ratio減速比 |
L1: 3 / 4 / 5 / 7 / 10 L2: 9 / 12 / 15 / 16 / 20 / 21 / 25 / 28 / 30 / 40 / 49 / 50 / 70 L3: 36 / 45 / 60 / 75 / 80 / 150 / 200 / 300 / 400 / 500 / 700 / 1000 |
|
|
n |
Motor Shaft Diameter 馬達軸心直徑(S) |
Customized according to customer requirement. 依客戶需求訂製 |
|
|
o |
Motor Pilot Diameter 馬達引導外徑(B) |
Customized according to customer requirement. 依客戶需求訂製 |
|
|
p |
Motor Guide Depth 馬達引導深度(P) |
Customized according to customer requirement. 依客戶需求訂製 |
|
|
q |
Installing Screw P.C.D 安裝螺絲孔直徑(M) |
Customized according to customer requirement. 依客戶需求訂製 |
|
|
r |
Installing Screw Size 安裝螺絲孔內徑(A) |
Customized according to customer requirement. 依客戶需求訂製 |
|
|
s
|
Motor Shaft Length 馬達出力軸長度(R) |
Customized according to customer requirement. 依客戶需求訂製 |
|
Dimensions
Applications
Application of Planetary Gearbox
Planetary Gearboxes are used on high precision motion control application that require a high torque, high torsional stiffness and low backlash the specifics of which will vary by application.
Planetary gearboxes increase the torque by the stage of reduction ratio, making it possible to run the motor at a higher, more efficient speed. The inertia reflected back to the motor is reduced for increased stability. Using a planetary gearbox allow machine builders using a smaller, less expensive motion control package.
The application of planetary gearboxes covers the entire range of automation. It's frequently found in "pick and place" systems, loading and unloading gantry robots, driving rotary and linear actuators, in packaging machineries, positioning tables in medical equipment.
