Planetary Gearbox servo motor Installation Guide

Follow the steps below for installing of precised planetary gearbox with Servo motor / Stepper motor



Step 1

Checking the conformity of mounting side dimension on planetary gearbox with servo motors' output flange and shafts.



Step 2

Remove the black stopper on mounting hole, then Lossen both the hexagonal bolt on input hollow shaft(bore) by hexagonal wrench.



Step 3

Remove the key from keyway on the servo (stepper) motor



Step 4

Clean and remove any dust or particales on the mounting surfaces of planetary gear box and servo motor



Step 5

Check the dimension of  the output shaft of servo motor before installing; if sleeve is needed, please pre installed it into the input hollow shaft(bore) of the planetary gearbox.



Step 6

Install the servo motor vertically into the mouting side of planetary gearbox.

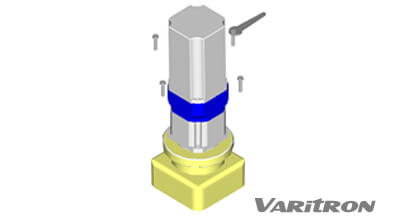

Step 7

Tighten the screw by adjustable wrench between planetary gearbox and servo motor.



Step 8

Tighten both the hexagonal screw of input hollow shaft(bore) on planetary gearbox by hexagonal wrench.



Step 9

Use a torque wrench to check the if the hexagonal screw is tighten



Step 10

Replace the black stopper back to the mounting side of planetary gearbox.



For more information on planetary gear gearboxes products, visit our products page or contact Varitron.
