RAH-F-Precision-Planetary-Gearbox

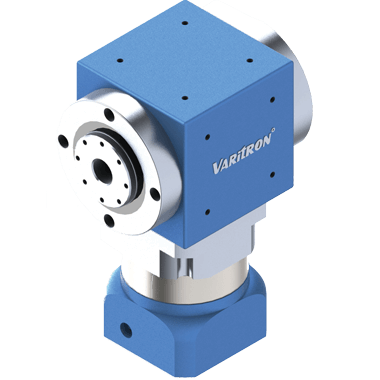

RAH-F Precision Planetary Gearbox

RAH-F Varitron Right angle hollow clamping output shaft(bore) RAM-D high precision planetary gearbox promise dynamic performances with low backlash.

Go TO Top

Features

- High Precision Gear -

 The planetary gear and sun gear are manufactured from high quality Ni-Cr-Mo alloy steel. Precision machined and carburized, then for precision tooth grinding or skiving assures gears high precision.

- Modular Deisgn of Motor Connection Plate -

The special modular design of motor connection plate is suitable for any brand and any type of servomotor. Manufactured from aluminum alloy, its surface is anodized treated for upgrading environmental-resistant and corrosion-resistant capability.

- Single-piece Gearbox & Advanced Surface Treatment -

The gearbox and internal gear ring are single price design and constructed, which is manufactured from Cr-Mo alloy steel, and tempered for high torque output. Gearbox surface is anti-corrosive treated for upgrading environmental resistant and corrosionresistant capability.

- Modular Input Shaft -

Modular input shaft design and motor shaft are coupled through a dynamic balanced collar clamping mechanism to ensure connection concentricity and zero slip power transmission at high speed.

- Integrated Planetary Arm Bracket -

The planetary arm bracket and the output shaft are single piece design constructed to increase torsional rigidity and accuracy. The entire structure is one-time machined for controlling accuracy in the specified tolerance.

Go TO Top

Technical

Information


Specification 規格

Ratio減速比

(Stage 段數)

RAH060

RAH090

RAH120

RAH150

Instantaneous Max. Output Torque

瞬間最大輸出扭矩

T2B (Nm)

3/9/10/30/100

132

498

750

1428

4/12/16/20/28/40

162

498

750

1500

5/15/25/35/50

138

498

750

1500

7/21/49/70

144

498

750

1500

Defined Output Torque

額定輸出扭矩

T2N (Nm)

3/9/10/21/30

44

166

250

476

4/15/16/20/25/28/40

54

166

250

500

5/15/25/35/50

46

166

250

500

7/21/49/70

48

166

250

500

Reduction Ratio 減速比

L1: 1 Stage 單段

3 / 4 / 5 / 7 / 10

L2: 2 Stage 雙段

9 / 12 / 15 / 16 / 20 / 21 / 25 / 28 / 30 / 35 / 40 / 49 / 50 / 70 / 100

L3: 3 Stage 三段

100 / 200 / 250

Defined Input Rotational Speed

額定輸入轉速

n1N (rpm)

3/4/5 (L1)

3300

2600

2300

2200

7/10 (L1)

4000

2900

2700

2700

12 ~ 40 (L2)

4400

3200

3000

3000

50 (L2)

4800

3600

3300

3200

70 ~ 100 (L2)

5500

4200

3900

3500

Backlash 精密背隙 (arcmin)

3~10 (L1)

≤16

≤16

≤16

≤16

12~100 (L2)

≤20

≤20

≤20

≤20

Full Load Efficiency

滿載時使用效率 %

3~10 (L1)

≥91

12~100 (L2)

≥88

Service Life使用壽命Lh2 (hrs)

3~100 (L1,L2)

20000

Weight 重量 (kgs)

3~10 (L1)

Vary according to shaft type

依產品輸出軸類型有所不同

12~100 (L2)

Noise 噪音值 (db)



65

65

65

65

Temperature使用溫度範圍°C



-15°C  ~ +90°C

Protection Rank 防護等級



IP64

Lubricating Oil 潤滑油



Synthetic Lubricant 合成潤滑油 ISO VG220

Go TO Top

Designation

j

Model型式

DA: Helical Gear High Precision Planetary Gearbox

DM:Precision Planetary Gearbox

DF:Precision Flange Type Planetary Gearbox

DH:Standard Precision Planetary Gearbox

DL:Standard Precision Planetary Gearbox

DN:High R-A Load Standard Precision Planetary Gearbox

RAM-S:Precision Shaft Output Spiral Bevel Gearbox

RAM-SS:Precision Double Shaft Spiral Bevel Gearbox

RAM-H:Precision Hollow Shaft Spiral Bevel Gearbox

RAM-D: Precision Clamping Shaft Spiral Bevel Gearbox

RAM-F: Precision Flange Spiral Bevel Gearbox

RAH-S: Standard Precision Shaft Output Spiral Bevel Gearbox

RAH-SS:Standard Precision Double Shaft Spiral Bevel Gearbox

RAH-H:Standard Precision Hollow Shaft Spiral Bevel Gearbox

RAH-D:Standard Precision Clamping Shaft Spiral Bevel Gearbox

RAH-F: Standard PrecisionFlange Spiral Bevel Gearbox

斜齒輪高精密型

密型

法蘭式精密型

標準型

標準型

高徑軸向負荷標準型

精密單出力軸直角型

精密雙出力軸直角型

精密中空軸直角型

精密束軸直角型

精密法蘭直角型

標準單出力軸直角型

標準雙出力軸直角型

標準中空軸直角型

標準束軸直角型

標準法蘭直角型

k

Frame Size 型號

042,060,070,080,090,120,150,180,220

Refer to Gearbox Quick Selection Table Page 89. 請參考快速選擇表第89

l

Stage段數

L1, L2, L3

m

Ratio減速比

L1: 3 / 4 / 5 / 7 / 10

L2: 9 / 12 / 15 / 16 / 20 / 21 / 25 / 28 / 30 / 40 / 49 / 50 / 70

L3: 36 / 45 / 60 / 75 / 80 / 150 / 200 / 300 / 400 / 500 / 700 / 1000

n

Motor Shaft Diameter

馬達軸心直徑(S)

Customized according to customer requirement. 依客戶需求訂製

o

Motor Pilot Diameter

馬達引導外徑(B)

Customized according to customer requirement. 依客戶需求訂製

p

Motor Guide Depth

馬達引導深度(P)

Customized according to customer requirement. 依客戶需求訂製

q

Installing Screw P.C.D

安裝螺絲孔直徑(M)

Customized according to customer requirement. 依客戶需求訂製

r

Installing Screw Size

安裝螺絲孔內徑(A)

Customized according to customer requirement. 依客戶需求訂製




s



Motor Shaft Length

馬達出力軸長度(R)

Customized according to customer requirement. 依客戶需求訂製
